Integrated TM and TC Processing
Software Modem combining Telemetry receive and Telecommand transmit in one pipeline, with continuous and burst-mode operation.
Expedite

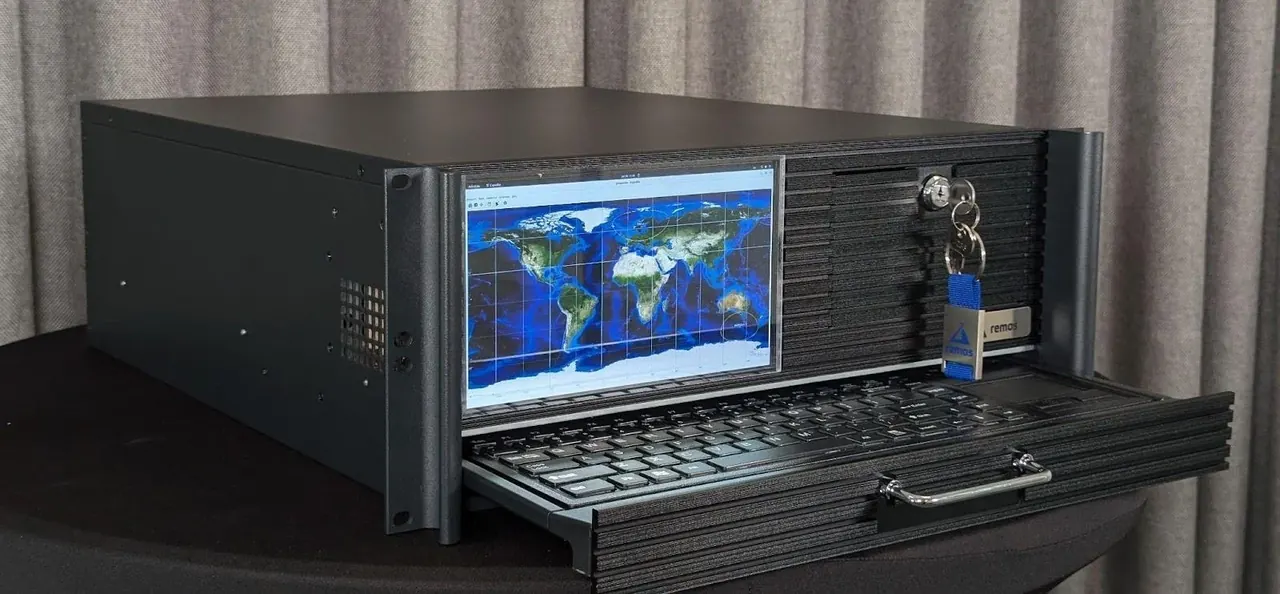

Software-defined TT&C modem for NewSpace missions
Expedite is a software TT&C modem that replaces dedicated ground hardware. You reconfigure it per mission, from CubeSats to deep-space probes, without touching the hardware. It is listed in NASA's 2026 State-of-the-Art Small Spacecraft Technology Report.
How Expedite is used.
Ideal Use Cases
Expedite is used by:
- SmallSat operators: ground communications for LEO missions on CubeSats and other small platforms.
- University and research missions: academic teams running space experiments, prototypes and testbeds.
- Ground Station as a Service (GSaaS): providers that need a modem they can run in the cloud and drive over an API.
- Short-timeline missions: demonstration missions that need a working ground link quickly.
Engineered to integrate, not isolate.
Mission Scheduler
Pass planning with horizon up to 168 hours and ephemeris-driven automation across the full mission lifecycle.
Antenna Control Unit Support
Instrumentation and drive for supported ACUs; internal or external angle generation over TCP/IP or serial.
Doppler Pre-Compensation
Internal or external Doppler feed keeps the link locked through high-angular-velocity passes.
Half-Duplex RF Sequencer Control
Direct control packets for the Remos Sequencer and other external relay logic.
CCSDS-Compliant Stack
RS, CC, BCH, and short LDPC coding; CADU/CLTU framing; PLOP-1 and PLOP-2 procedures.
Host Integration APIs
TCP/IP, REST, WebSocket, ZeroMQ and a web application. Use whichever fits your stack.
Mission Logging and Diagnostics
Telemetry, Doppler, antenna, IQ recording, BER/FER monitoring, TTC visualizer, and spectrum analyzer in one console.

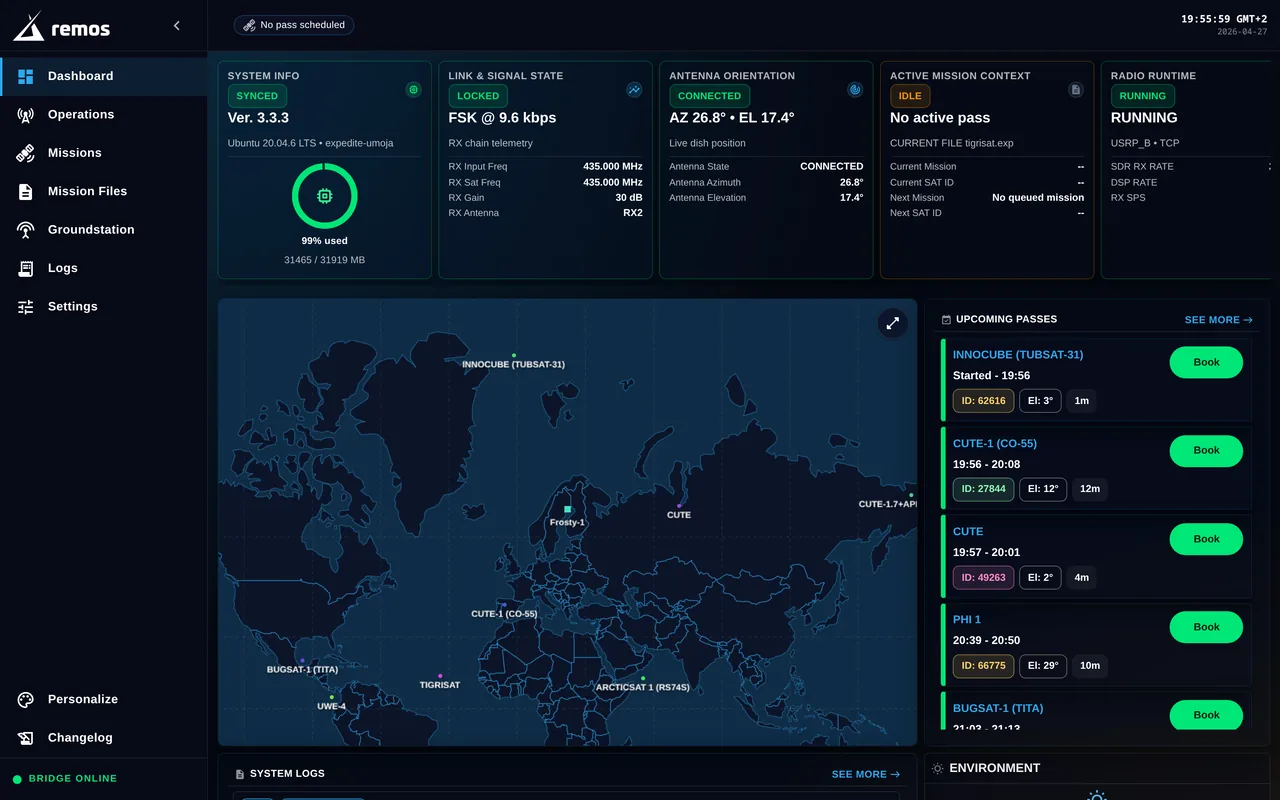

Mission ops dashboard
Every link, every pass, on one screen.
The Expedite dashboard shows link state, antenna orientation and the global pass queue live. We designed it with operators running real missions, so what you need during a pass is on the screen without digging through menus.
Mission Control
Plan, queue, and prioritize missions across your entire satellite fleet.
Live mission ops
Real-time link state, Telemetry, and commanding the moment a pass opens.
Satellite tracking
Live AZ/EL pointing with mission elevation curves and doppler correction.
Full Ground Station control
Antenna, modem, sequencer and scheduler in one console.
Spec sheet.
All of the numbers, grouped.
RF and Baseband Processing
- System Role
- Software Modem for Telemetry, Telecommand, scheduling, and automation
- Supported Frequency Range
- 70 MHz to 2.5 GHz
- Mission Bands
- VHF, UHF, S-Band, low-rate X-Band
- Operating Mode
- Continuous and burst
- TM/TC Symbol Rate
- 100 sps to 1 Msps standard; up to 25 Msps optional extension
- Modulations
- BPSK, QPSK, oQPSK, FSK, GMSK, AFSK, ASK, GFSK, PCM/PM, PCM/PSK/PM
- Line Codes
- NRZ-L/M/S, BP/Manchester-L/M/S
- Scramblers
- G3RUH, CCSDS
- Framing
- CCSDS CADU and CLTU, AX.25, HDLC, AirMac, RAW; four ASM variants
- Data Formats
- CSP, Satlab, user-defined
- Forward Error Correction
- CCSDS RS(255,223), RS(255,239), CC(7,1/2), concatenated, BCH, short LDPC
- Telecommand Procedures
- PLOP-1, PLOP-2; GUI CMM1/CMM2/CMM4 timing 1 to 9999 ms
- Pulse Shaping
- SRRC, Integral
- Satellite Transceivers
- GOMSpace AX100, AX2150; Satlab SRS-3/4; AAC Clyde Space; EnduroSat UHF II; GAUSS
- Reference Inputs
- 10 MHz, 1PPS; optional GPS reference
- Digitizer
- Physical, DIFI or VITA49
Tracking, Pass Operations, and Logging
- Ephemeris
- Network-fed updates (e.g. Celestrak); SGP4/SDP4 propagation
- Pass Planning
- Horizon up to 168 hours
- Antenna Control
- ACU instrumentation; internal angle generation or external angle input over TCP/IP or serial
- Doppler
- Internal generation or external feed
- Supported Rotors
- SPID Rot2Prog, Yaesu, Prosistel, M2, RotCtrl; others on request
- Sequencer
- Half-duplex RF relay switching; control packets for external logic
- Mission Logs
- Telemetry, Doppler, Tracking, Antenna, Telemetry IQ, Command IQ
- Operator Tools
- TTC Visualizer, spectrum analyzer, mission statistics, TTC/network status, radio control, pass views
Diagnostics and Mission Visibility
- Link Validation
- Loopback and link-check workflows
- Link Quality
- BER/FER-oriented monitoring; Telemetry statistics and failure counters
- Spectrum
- Spectrum, constellation, and distribution views
- Frame Visibility
- TTC Visualizer; frame and Telecommand hex display with metadata
- Post-Pass Analysis
- Mission logs, TTC statistics, Doppler and antenna status, recorded IQ
Mechanical and Environmental
- Form Factor
- 4U rack-mount server with built-in digitizer
- Dimensions (H × W × D)
- 177 × 482 × 555 mm
- Mass
- 16 Kg
- RF Connector
- SMA female, 50 Ω
- Operating Temperature
- +10 °C to +40 °C
- Front Panel
- Integrated keyboard, pointing device, and LCD
- Rear SDR Interfaces
- Tx1, Tx2, Rx1, Rx2, 10 MHz, 1PPS; optional GPS reference
- AC Supply
- 230 V AC; maximum consumption 500 W
Operations and Integration
- Scheduling
- Integrated mission scheduler for pass planning and automated operations
- Antenna Support
- Instrumentation and control for supported antenna control units (ACUs)
- Operator Access
- Local GUI, remote desktop, integrated front panel, and REST API
- Host Data Interfaces
- Native TCP/IP streaming; REST, WebSocket, and ZeroMQ
- Optional Extensions
- CCSDS Space Link Extension (SLE); 25 Msps symbol-rate extension; Cortex-like streaming
- Documentation
- Product manual and REST API documentation (English)
Hardware Compatibility and Deployment
- SDR and IQ Sources
- USRP B-Series, N-Series, X-Series; SpectralNet; VRT; file-based IQ
- Deployment Modes
- Virtualized; integrated modem appliance with built-in digitizer; Ground Station kit
- Host Access
- Local GUI and front panel; remote desktop; REST API; browser-based remote operation
